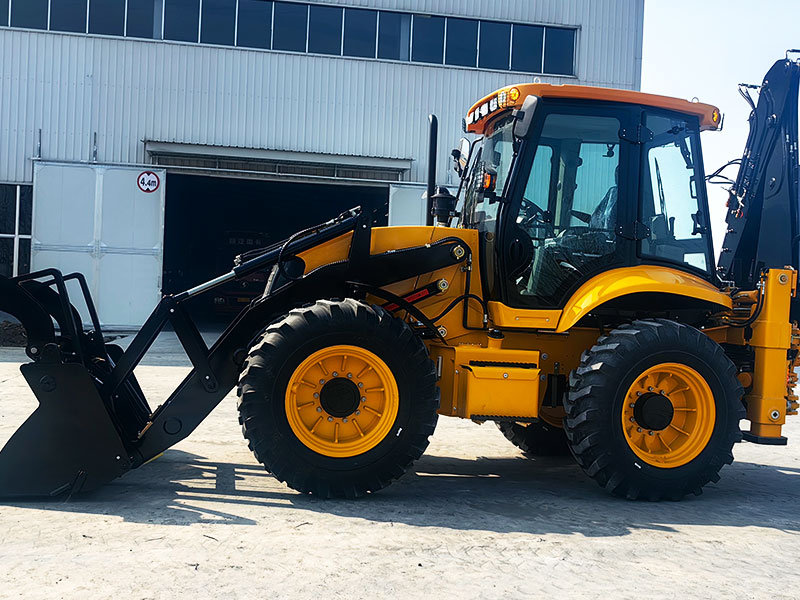

Backhoe loader

Category： Multifunctional Construction Equipments
QR code：
1.Strong power, high efficiency, fuel saving, reasonable structure, and comfortable cab.
2.It can be used in small spaces, two-way driving, fast and convenient rear control.

Color can be customized.

Whatsapp：8619853852666 Contact us

Product details：

項目	明細		標準配置參數
總尺寸Overall Dimension	Length(with bucket on ground)總長（鏟斗放置地面）		7600mm
	Overall width（at stabilizer ）總寬（支腿處）		2230mm
	Load Bucket width鏟斗寬度		2220mm
	Height(To the top of the cab)高度（到駕駛室頂）		3100mm
	Height(To the top of the digging pole)整機高度(到挖掘臂頂部)		3800 mm
	Wheel base軸距		2280mm
	Back wheel Tread后輪輪距		1750 mm
主要技術參數 Main technical parameters	Rated load額定載重量		2500KG
	Operating weight操作重量		7820kg
	Rated bucket capacity額定斗容		1m3
	Max. dump clearance最大卸載高度		2720 mm
	Dump reach卸載距離		900 mm
	Min. turning radius最小轉彎半徑
	(1) Outside of bucket 以鏟斗邊緣		5410mm
	(2) Center of front wheel以前輪胎痕跡中心		4100mm
	Max lifting capability 最大提升能力		2500KG
	Max. load breakout force最大掘起力		≥45KN
挖掘主要技術參數Main Digging Technical Specification	Rated digging bucket capacity額定挖掘斗斗容		0.3m3
	Max. digging depth最大挖掘深度		3967 /3424mm
	Max. digging radius最大挖掘半徑		5796/5955 mm
	Max. dumping height 最大卸載高度		3813/3780 mm
	Max. digging force最大挖掘力		≥44KN
	Max. Digging Height最大挖掘高度		5346/5449 mm
發動機Diesel engine	Model型號		Wei Chai WP4G100E220
	Type形式		Direct injection. Turbocharged. Water cooling
	Rated output額定功率		73 (kW)
	Total exhaust of cylinder排氣量		4.5(L)
	Rated speed額定轉速		2200(r/min)
	Max. Torque最大扭矩		420(N.M)
傳動系統Transmission System	Torque Converter液力變矩器	Model型號	CARRARO
		Cooling type 冷卻方式	Pressure oil circulating壓力油循環
	Transmission case變速箱	Model型號	CARRARO
		Type形式	Synchromesh mechanical shift同步機械換檔
	Axle and Tire橋	Model型號	CARRARO
		Type of main reducer	spiral bevel gear, single stage
		主傳動形式	單級螺旋傘齒輪
		Type of final reducer	Single stage planetary
		終傳動形式	單級行星輪
	Gear shift position檔位		4 F、 4 R前四后四檔位
	Speed 速度（F/R）		36km/h
	Max. drawing force最大牽引力		≥67KN
	Size of tire輪胎型號	前輪	14-17.5-16PR
		后輪	19.5L-24-14PR
加油量Oil Capacity	Fuel(diesel)燃油		130 L
	Engine lubricating oil機油		11 L
	Oil for converter and gear box變速箱油		22 L
	Oil for hydraulic system液壓系統油		130 L
	Oil for driving axles（F/R）前后驅動橋油		7.6 L+17 L
